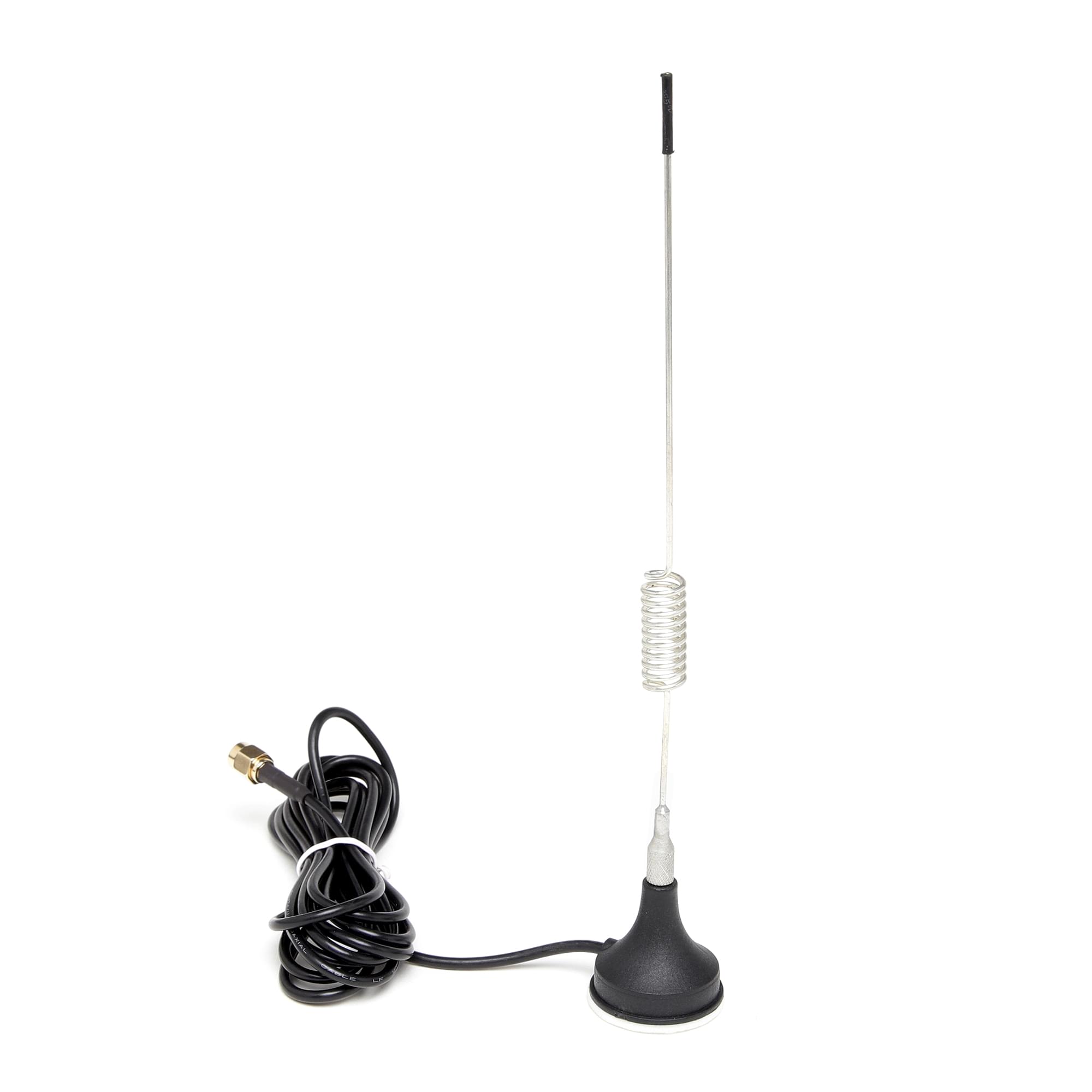

AT-ANT-QCDMA-HMM-SMA58-3-5.0
- Description: CDMA Band Antenna
- Part Number:AT-ANT-QCDMA-HMM-SMA58-3-5.0
- Manufacturer: Anand Technologies
- Electrical and Mechanical Specifications mentioned in Description.
- Click here AT-ANT-QCDMA-HMM-SMA58-3-5.0 to Download the Product Datasheet in PDF
🔥 12 items sold in last 3 hours
40 people are viewing this product right now
Please, activate Compare option to use this widget.
Electrical Specification:
- Part No: AT-ANT-QCDMA-HMM-SMA58-3-5.0
- Antenna Type: OMNI
- Operating Frequency: 824-894 MHz and 1700-1800 MHz
- Gain: 5 dBi (±0.5 dBi)
- Impedance: 50 Ohm
- Polarization: Vertical and Horizontal
- RF Connector: SMA
- Connector Type: Male
- Finish: Au, Ni
- Cable Type: RG58
- Cable Length: 3 meters
Mechanical Specification:
- Dimensions: 300 x 045 mm
- Mount Type: Magnetic Mount
- Operating Temperature: -20 to +65°C
- Enclosure Material: ABS ,Pc
- Environment: 95% Relative Humidity (RH)
- Description: CDMA Band Antenna
