AT-ANT-QCDMA-HMM-SMA174-3-6.5

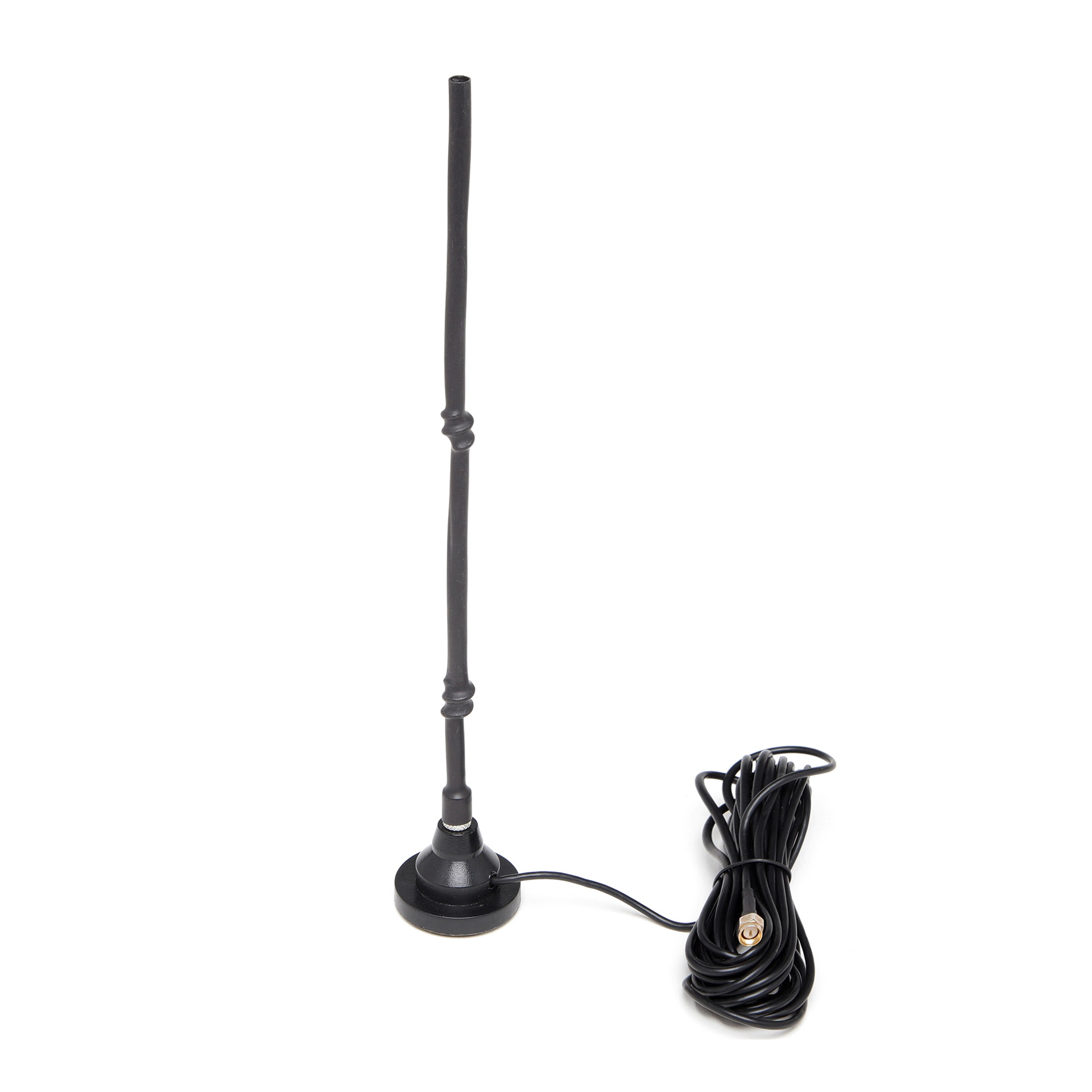

- Description: CDMA BAND HELICAL HIGH GAIN ANTENNA
- Part Number:AT-ANT-QCDMA-HMM-SMA174-3-6.5
- Manufacturer: Anand Technologies
- Electrical and Mechanical Specifications mentioned in Description.
- Click here AT-ANT-QCDMA-HMM-SMA174-3-6.5 to Download the Product Datasheet in PDF
🔥 8 items sold in last 3 hours
38 people are viewing this product right now
Please, activate Compare option to use this widget.
Electrical Specification:
- Part No: AT-ANT-QCDMA-HMM-SMA174-3-6.5
- Antenna Type: OMNI
- Operating Frequency: 824 – 894 MHz, 1700 – 1800 MHz
- Gain:6.5 dBi (±0.5 dBi)
- Impedance: 50 Ohm
- Polarization: Vertical and Horizontal
- RF Connector: SMA
- Connector Type: Male
- Cable Type: RG174
- Cable Length: 3 meters
Mechanical Specification:
- Dimensions: 280 x Ø29 mm
- Mount Type: Magnetic Mount
- Operating Temperature: -20 to +65°C
- Enclosure Material: ABS , PC
- Environment: 95% Relative Humidity (RH)
- Description: CDMA BAND HELICAL HIGH GAIN ANTENNA
