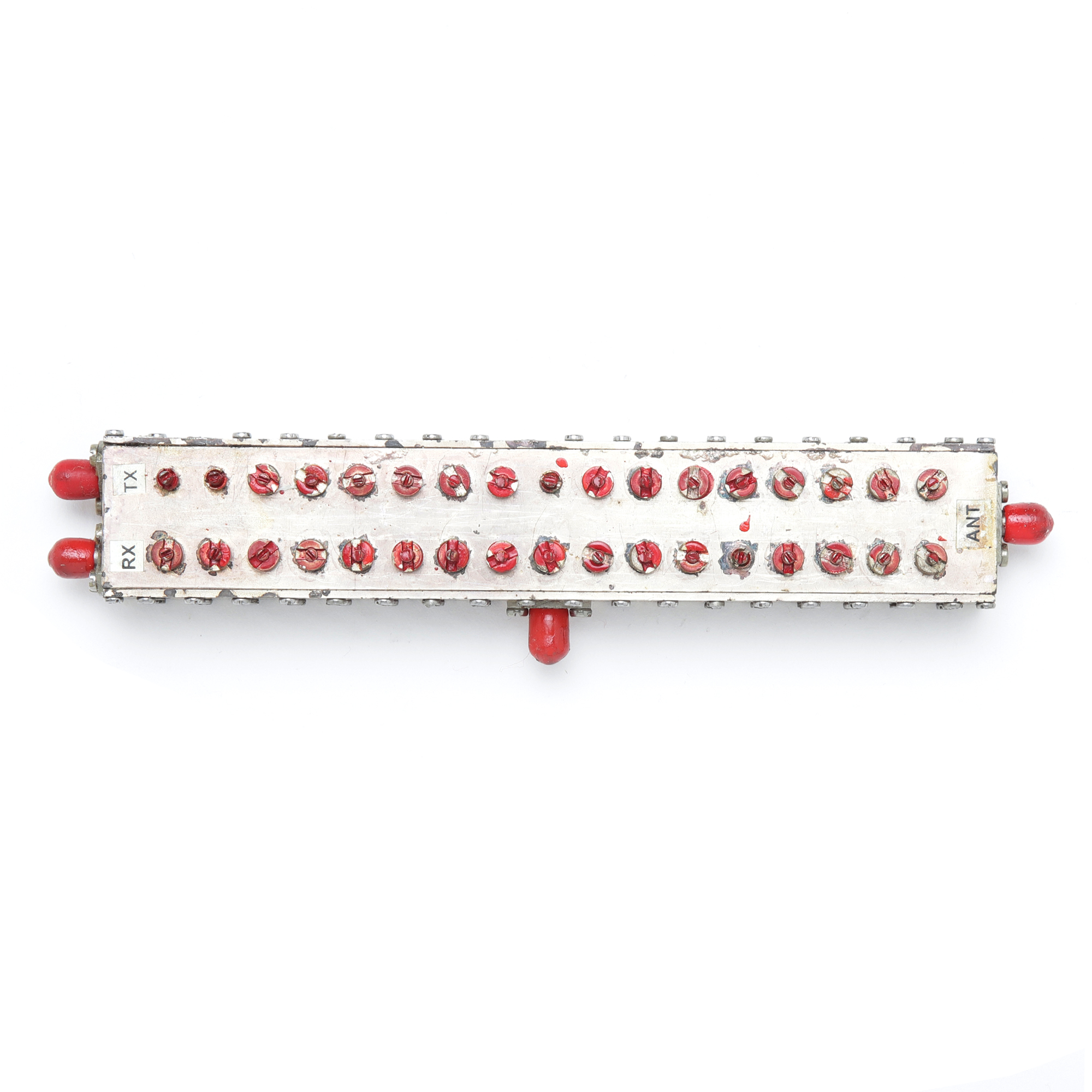

Exp Duplexer
- Description: Duplexer
- Part Number: AT-MD-1400
- Manufacturer: Anand Technologies
- Electrical and Mechanical Specifications mentioned in Description.
- Click here Exp Duplexer to Download the Product Datasheet in PDF
🔥 7 items sold in last 3 hours
29 people are viewing this product right now
Please, activate Compare option to use this widget.
Electrical Specifications
- Part number : AT-MD-1400
- TX Pass Band Frequency: 1498-1522 MHz
- RX Pass Band Frequency: 1428-1452 MHz
- Insertion Loss (TX Passband): 1.0 dB Max
- Insertion Loss (RX Passband): 1.0 dB Max
- Attenuation to 12 GHz: 30 dB
- Attenuation to 30-1400 MHz: 50 dB
- TX-RX Isolation: >80 dB
- RF Connectors: SMA (Female)
- Nominal Impedance: 50 Ω
- Power Handling Capacity: 50W
Mechanical Specifications
- Dimensions: 174 x 52 x 50 mm
- Finish: Silver Plating & Silver
